Portable Line Boring Machine

The EZ Line Boring Machines support boring diameters from 1.375 to 80 inches (35 to 2030mm), with the precision and speed of stationary machines.Specially designed mounting brackets, Spherical bearings,self-centering setup cones,and movable rotational drive and feed units simplify setup and allow the tools to work in spaces too tight for most line boring machines.

The EZ Line Boring Machines produce workshop quality tolerances on site eliminationg costly dismantling and production downtime.Many configurations are possible by choosing different bar diameters and lengths,along with a wide range of inserts,boring arms and facing heads.

Please feel free to contact EZ Portable Machines info@ezlinkportable.com to help you select and configure.

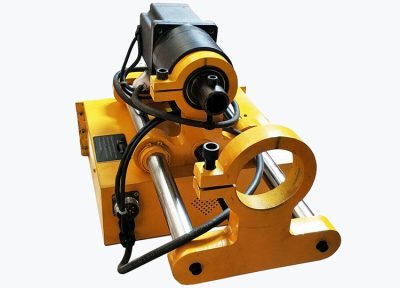

SLB50 portable line boring machine
SLB50 portable line boring machine mobile

SLB50 LINE BORING MACHINE

bar diameter50MM, 30MM(optional)
boring diameter35MM/55MM-250MM
Power220V-Single Phase,2.3KW Servo Motor

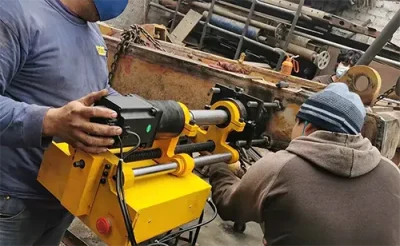

ELB40 portable line boring machine barrenadoras mobile

ELB40 LINE BORING MACHINE

bar diameter40MM
boring diameter45MM-200MM
Power220V-Single Phase,1.5KW Motor

portable line boring machine elb40-2

ELB50 LINE BORING MACHINE

bar diameter50MM
boring diameter55MM-250MM
Power220V-Single Phase,1.5KW Motor

Portable Line Boring Machine ebm50

EBM50 LINE BORING MACHINE

bar diameter50MM, 35MM(OPTIONAL)
boring diameter40MM/55MM-300MM
Power110V/230V,1.3KW Metabo Motor

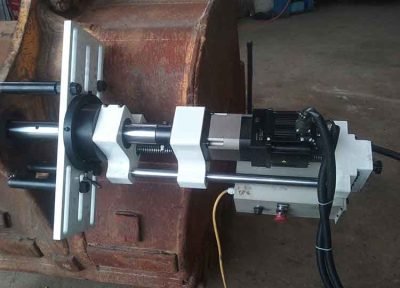

ELBA60 portable line boring machine-servo motor

ELBA60 LINE BORING MACHINE

bar diameter60MM
boring diameter65MM-500MM
Power380V-Three Phase,2.0KW Servo Motor
