Portable Pipe Cutting & Beveling Machines

EZLINK PORTABLE offers both ID and OD mounted  pipe beveling machine, pipe & tube beveling, pipe cutting and beveling machines. Our beveling and cutting & beveling machines significantly faster as compared to traditional methods. The resulting surfaces are precise and of uniform quality – the pipes are ready for joining right away. Both ID and OD type machine can be used in workshops as well as on site and on all kind of material (carbon steel, stainless steel, duplex, inconel, etc.).

The ID mounted pipe beveling machines are designed to straighten the front, create bevel and inner calibration of pipe diameter. Machining range from ½” I.D. up to 24.8” O.D. (12.7 – 630 mm). The power is delivered with electrical, pneumatic motor.

Our Pipe Cold Cutter is a low weight machine for cutting and beveling. It is a spilt frame for fast OD mounting. It is easy to clamp and adjust to the pipe. The EZ ODB requires a minimum of space around the pipe and is delivered with electrical, pneumatic or hydraulic motor. The machine body can be contructed with steel and aluminium. Machining range from 0” up to 60” O.D.(0 – 1524 mm)

Please feel free to contact us for select and configure.

PIPE CUTTING BEVELING MACHINES
V1 pipe beveling machine-pneumatic

V1 Pipe Beveling Machine​

Working Range16MM ID-33.4MM OD (0.63 in ID-1.31 in OD)
PowerPneumatic (900L/Min@0.6Mpa, 1 HP) Electric (220-240V 1PH 50/60HZ, 720W) BOSCH (220-240V 1PH 50/60HZ, 850W)
Rotation Speed:66r/min, 52r/min, 48r/min
V3 Pipe beveling machines-pneumatic


V3 Pipe Beveling Machine​

Working Range25MM ID-89MM OD (0.98 in ID-2.26 in OD)
PowerPneumatic (900L/Min@0.6Mpa, 1 HP) Electric (220-240V 1PH 50/60HZ, 720W) BOSCH (220-240V 1PH 50/60HZ, 850W)
Rotation Speed:66r/min, 52r/min, 48r/min
V6 Pipe Beveling Machine-pneumatic


V6 Pipe Beveling Machine​

Working Range60MM ID-168.28MM OD (2.36 in ID-6.6 in OD)
PowerPneumatic (900L/Min@0.6Mpa, 1 HP) Electric (220-240V 1PH 50/60HZ, 1050W) BOSCH (220-240V 1PH 50/60HZ, 1000W)
Rotation Speed:61r/min, 36r/min, 38r/min

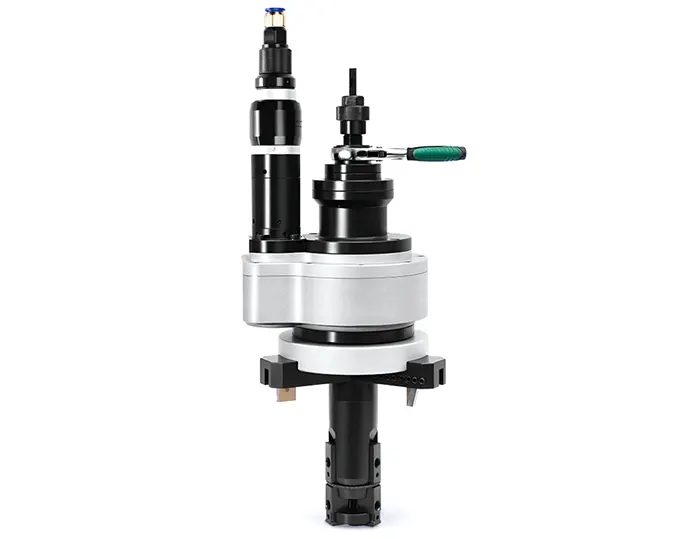

V8 Pipe beveling machine-pneumatic


V8 Pipe Beveling Machine​

Working Range65MM ID-219.08MM OD (2.56 in ID-8.63 in OD)
PowerPneumatic (1200L/Min@0.6Mpa, 1.5HP) Electric (220-240V 1PH 50/60HZ, 1200W)
Rotation Speed:50r/min, 24r/min
V8 Pipe beveling machine-pneumatic


V14 Pipe Beveling Machine​

Working Range145MM ID-355.6MM OD (5.7 in ID-14 in OD)
PowerPneumatic (1200L/Min@0.6Mpa, 1.5HP) Electric (220-240V 1PH 50/60HZ, 1500W)
Rotation Speed:18r/min, 20r/min
pipe cutting beveling machine



ODB168 Cutting Beveling Machine​

Working Range50MM ID-168MM OD (2-6 in)
PowerPneumatic,Electric,Hydraulic optional
Machine Body material:Steel, Aluminium optional

Pipe cutting beveling machine



ODB275 Cutting Beveling Machine​

Working Range114MM ID-275MM OD (5-10 in)
PowerPneumatic,Electric,Hydraulic optional
Machine Body material:Steel, Aluminium optional

ODB377 Split Clamshell cutting beveling machine



ODB377 Cutting Beveling Machine​

Working Range200MM ID-377MM OD (8-14 in)
PowerPneumatic,Electric,Hydraulic optional
Machine Body material:Steel, Aluminium optional

ODB560 Split Clamshell cutting beveling machine



ODB560 Cutting Beveling Machine​

Working Range400MM ID-560MM OD (16-22 in)
PowerPneumatic,Electric,Hydraulic optional
Machine Body material:Steel, Aluminium optional

ODB660 Split Clamshell cutting beveling machine



ODB660 Cutting Beveling Machine​

Working Range500MM ID-660MM OD (20-26 in)
PowerPneumatic,Electric,Hydraulic optional
Machine Body material:Steel, Aluminium optional

ODB1230 Split Clamshell cutting beveling machine



ODB1230 Cutting Beveling Machine​

Working Range1066MM ID-1230MM OD (42-48 in)
PowerPneumatic,Electric,Hydraulic optional
Machine Body material:Steel, Aluminium optional
